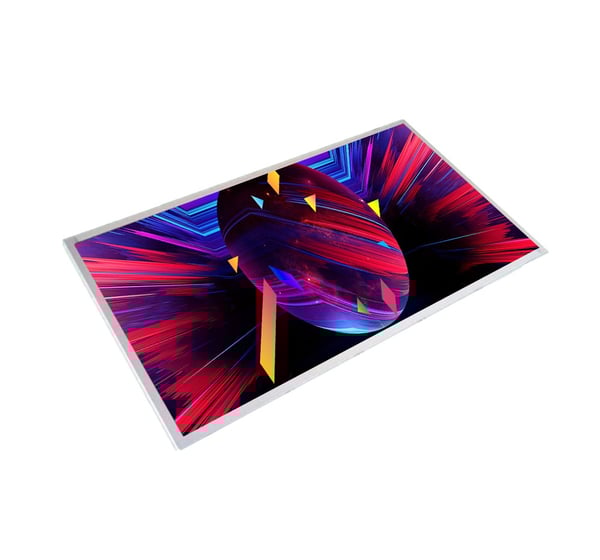

INNOLUX M185BGE-L23 18.5 inch lcd screen

BOE

Manufacturer: BOE

Model Name: MT220WPM-N10

Screen Size: 22.0 inch

Screen Type: LCM , a-Si TFT-LCD

Pixel Number: 1680(RGB)×1050 (WSXGA+) 90PPI

Arrangement: RGB Vertical Stripe

Active Area(mm): 473.76 × 296.1 (H×V)

Outline(mm): 493.7 × 320.1 × 10.7 (H×V×D)

Bezel Area(mm): 477.7 × 300.1 (H×V)

Treatment: Antiglare (Haze 25%), Hard coating (3H)

Luminance: 250 cd/m² (Typ.)

Contrast Ratio: 1000 : 1 (Typ.) (TM)

Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Response: 1.5/3.5 (Typ.)(Tr/Td) ms

Good View at: 6 o'clock

Work Mode: TN, Normally White, Transmissive

Color Depth: 16.7M 72% NTSC

Backlight: 3 strings WLED , 40K hours , No Driver

Mass: 1.83Kgs (Typ.)

Used for: Desktop Monitor

Refresh Rate: 60Hz

Touchscreen: Without

Signal Type: LVDS (2 ch, 8-bit) , 30 pins Connector

Voltage Supply: 5.0V (Typ.)

Max. Ratings: Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C
