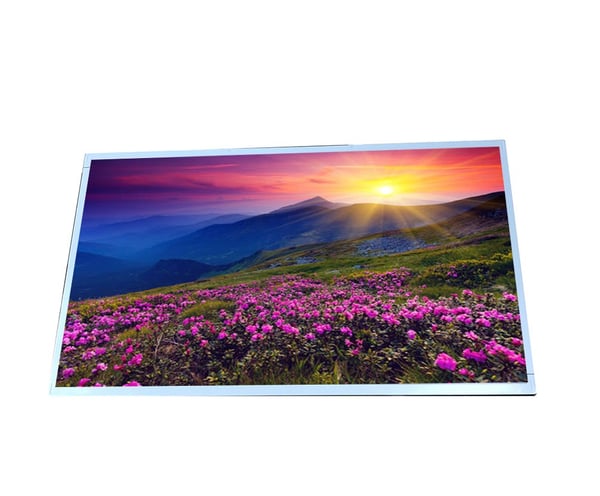

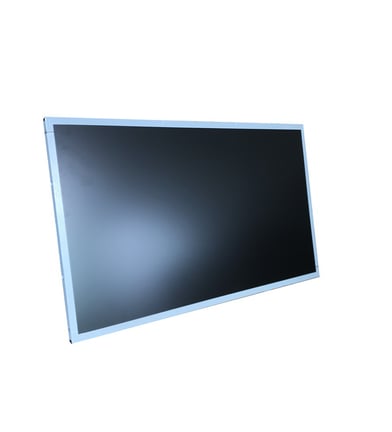

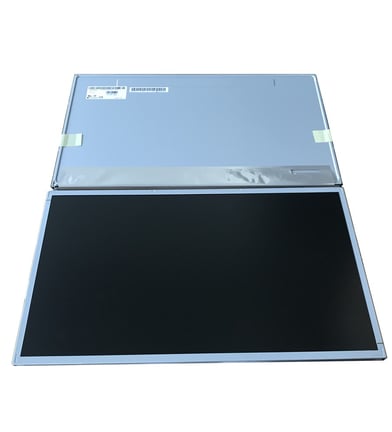

LM215WF3-SLS1 21.5 inch LG Full HD LCD Display Panel With All Viewing Angle

The LM215WF3-SLS1 is a 21.5 inch diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²).

It's general features are summarized in the following: WLED Backlight, Reverse I/F . Based on its features, we recommend that this model be applied to Desktop Monitor, Industrial etc. Now this model is in production.

LM215WF3-SLS1 21.5 inch LG Full HD LCD Display Panel With All Viewing Angle
LM215WF3-SLS1 21.5 inch LG Full HD LCD Display Panel With All Viewing Angle
LM215WF3-SLS1 21.5 inch LG Full HD LCD Display Panel With All Viewing Angle
LM215WF3-SLS1 21.5 inch LG Full HD LCD Display Panel With All Viewing Angle

Panel Brand LG Display

Panel Size 21.5"

Panel Model LM215WF3-SLS1

Panel Type a-Si TFT-LCD , LCM

Resolution 1920(RGB)×1080, FHD, 102PPI

Pixel Format RGB Vertical Stripe

Display Area 476.064(W)×267.786(H) mm

Outline Size 497.6(W)×292.2(H) ×11(D) mm

Bezel Opening 479.8(W)×271.3(H) mm

Surface Antiglare (Haze 25%), Hard coating (3H)

Brightness 250 cd/m² (Typ.)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Contrast Ratio 1000:1 (Typ.) (TM)

Display Mode IPS, Normally Black, Transmissive

Response Time 14 (Typ.)(G to G)

Best View on Symmetry

Display Colors 16.7M 72% NTSC

Frequency 60Hz

Weight 1.69/1.77Kgs (Typ./Max.)

Lamp Type 17S2P WLED , 30K hours , Without Driver

Touch Screen Without

Application Desktop Monitor Industrial

Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector

Input Voltage 5.0V (Typ.)

Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

The LM215WF3-SLS1 is a 21.5 inch diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²).

It's general features are summarized in the following: WLED Backlight, Reverse I/F . Based on its features, we recommend that this model be applied to Desktop Monitor, Industrial etc. Now this model is in production.

If you want to embed LM215WF3-SLS1 LCM in your future product, we strongly recommend that you should contact with LG Display or XIANHENG to learn lateast production and specification detail.
